Product name: | Ethernet Media Converter | Power supply: | DC 5~18V |
---|---|---|---|
Dimension: | 78 x 27 x 18 mm | Fiber Port: | SFP - 100/1000M adaptive |
Weight: | 46g | Power: | 3W |

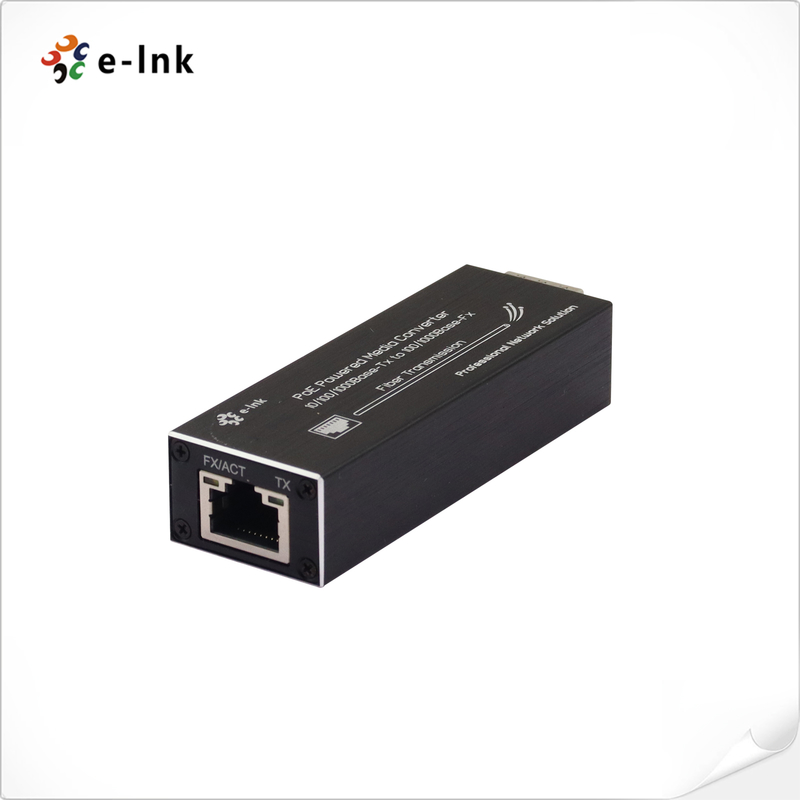

LNK-M3011PD-SFP compact converter bridges copper and fiber networks, supporting:
Key Features:
Ideal for extending network reach with seamless media conversion.
(Word count reduced by ~50% while retaining all key technical specifications and benefits)
Technical Indexes
Parameter | Specifications |
Access mode | 10/100/1000Mbps Gigabit Ethernet |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
Fiber Port | SFP - 100/1000M adaptive |
Wavelength | 850nm/1310nm/1550nm (Based on SFP Module used) |
Transmission distance |
Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m |
Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP |
Conversion means | Media conversion |
LFP | Not Support |
BER | <10-9 |
MTBF | 100,000 hours |
LED indicator |
PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
Power supply |

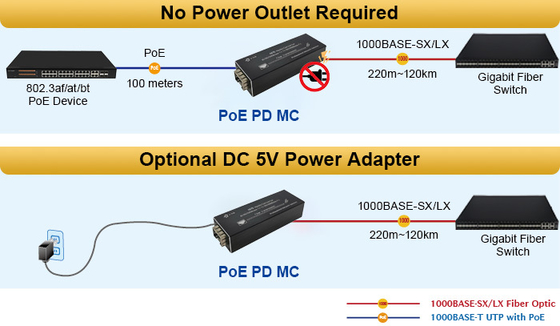

DC 5~15V (Type-C) Or Powered by IEEE802.3at PoE Injector / PoE Switch |
Power consumption | <3W |
Operating temperature | 0~45ºC |
Operating humidity | 5%~90% |
Maintaining temperature | -40~70ºC |
Maintaining humidity | 5% ~ 90% non-condensing |
Weight | 46g |
Dimensions (W x D x H) | 78 x 27 x 18 mm |
Ordering Information
Model | Description |
LNK-M3011PD-SFP | Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Fiber Media Converter with PoE Powered Function, not including SFP module, standalone, external power adaptor |
Power Options |

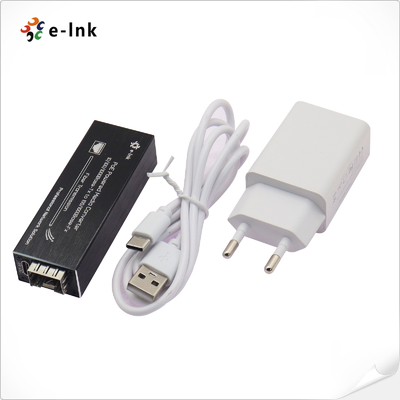

5V Power supply adapter included, with USB Type-C cable; Also support powered by IEEE802.3at PoE Injector / PoE Switch |
Features
Overview
