পণ্যের বিবরণ:
প্রদান:
|
Voltage range: | DC48V~57V | Consumption: | <5W |
---|---|---|---|
Ethernet Port: | 10/100M | CCTV mode: | 0~250m |
Transmission Medium: | Cat5e/6 network cable | PoE Protocol: | IEEE802.3af/at protocol |
PoE Power Supply: | End-span | Warranty: | 5 years |
লক্ষণীয় করা: | power over ethernet gigabit switch,poe powered gigabit switch |

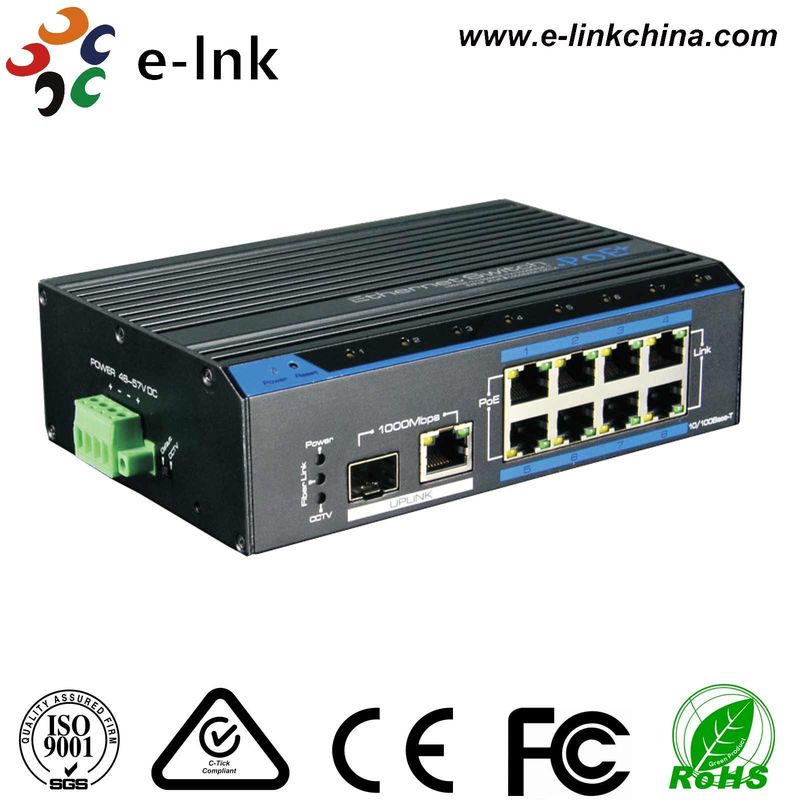

Rugged Ethernet POE Switch 1x10/100/1000M RJ45 + 1x1000M SFP Uplink , 8x10/100M
Overview
LNK-GYT208 Series is 8 ports PoE Ethernet Switch is an unmanaged Ethernet switch. This product provides 1 Gigabit uplink Ethernet port and 1 Gigabit uplink fiber port and 8* 100Mbps PoE Ethernet ports, support IEEE802.3af/at power supply standard. The product is widely used in security surveillance and network project.
Features
Application
Technical Indexes
Item | Description | ||||
Power | Power Supply | Power Adaptor | |||
Voltage range | DC48V~57V | ||||
Consumption | <5W | ||||
Ethernet | Ethernet Port |
1~8 ports: default mode: 10/100BASE-TX;CCTV mode:10BASE-T; UPLINK Ethernet port:10/100/1000BASE-T; SFP:1000BASE-X |
|||
Transmission Distance |
Downlink port: default mode: 0~150m; CCTV mode: 0~250m Uplink port: 0~150m SFP: depends on SFP module performance |
||||
Transmission Medium | Cat5e/6 network cable | ||||
PoE Protocol | IEEE802.3af/at protocol | ||||
PoE Power Supply | End-span | ||||
Ethernet Exchange Specification |
Ethenet Standard |
IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX; IEEE802.3ab 1000BASE-TX; IEEE802.3z 1000-SX/LX; IEEE802.3 X |
|||
Switch Capacity | 5.6Gbps | ||||
Packet Forwarding Rate | 4.12Mpps | ||||
Packet Buffer | 1M | ||||
MAC Address | 8K | ||||
Status |
Power Indicator Light |
Front board: 1 pc red Light Side board: 1 pc red Light |
|||
CCTV Indicator Light | 1 pc(green), the green light on Indicates CCTV Mode start | ||||
Optical Port LED indicator | 1pc SFP port working indicator light: green | ||||
Uplink Ethernet Port Indicator |
1 pc network working status: green light on RJ 45 port | ||||
Downlink Ethernet Port Indicator |
1~8 ports : green light indicates network status, yellow light indicates PoE status |
||||
Reset | PoE Reset Button | Total 8 pcs, corresponding to 1~8 ports, PoE Function reset | |||
Reset | 1 pc, machine reset | ||||
Protection Level | Port Lighting Protection | 6KV , Per: IEC61000-4-5 | |||
ESD | 6KV/ 8KV , Per: IEC61000-4-2 | ||||
Working Environment | Working Temperature | -40℃~85℃ | |||
Storage Temperature | -40℃~85℃ | ||||
Humidity(Non- | 0~95% | ||||
Mechanical |
Dimension(L*W*H) | 159mm×110mm×46.5mm | |||
Out Shell | Aluminum | ||||
Color | Black | ||||
Weight | 575g | ||||
Power/Distance 54V |
Distance | 100m | 150m | 200m | 250m |
Power | 26W | 24W | 23W | 21W |
